Name: Ruffian Mustang Build Book - Softcover + PDF
Brand: BookBaby
SKU: ruffian-mustang-buildbook
Price: 27.99 USD
Availability: InStock

1970

Mustang Fastback

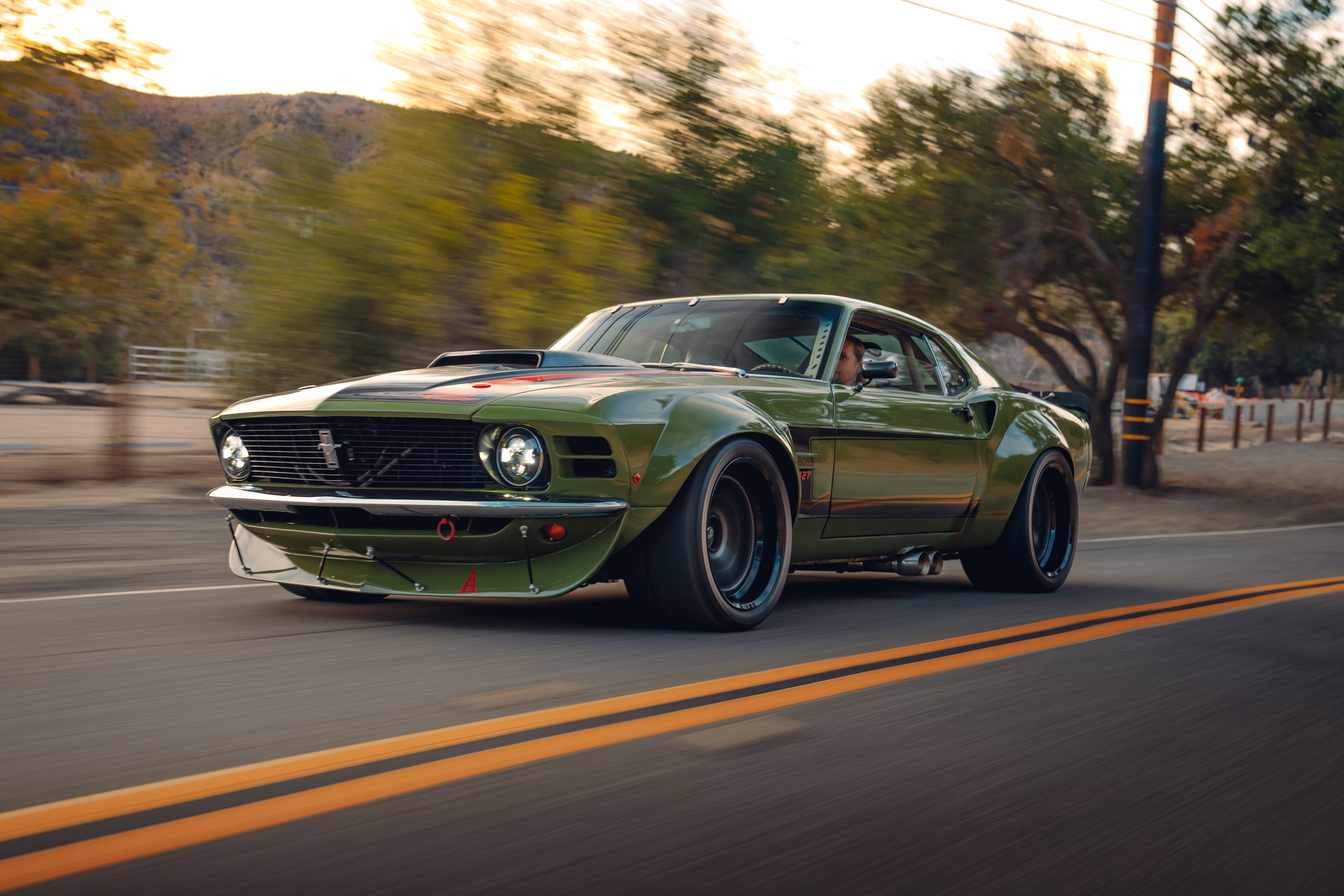

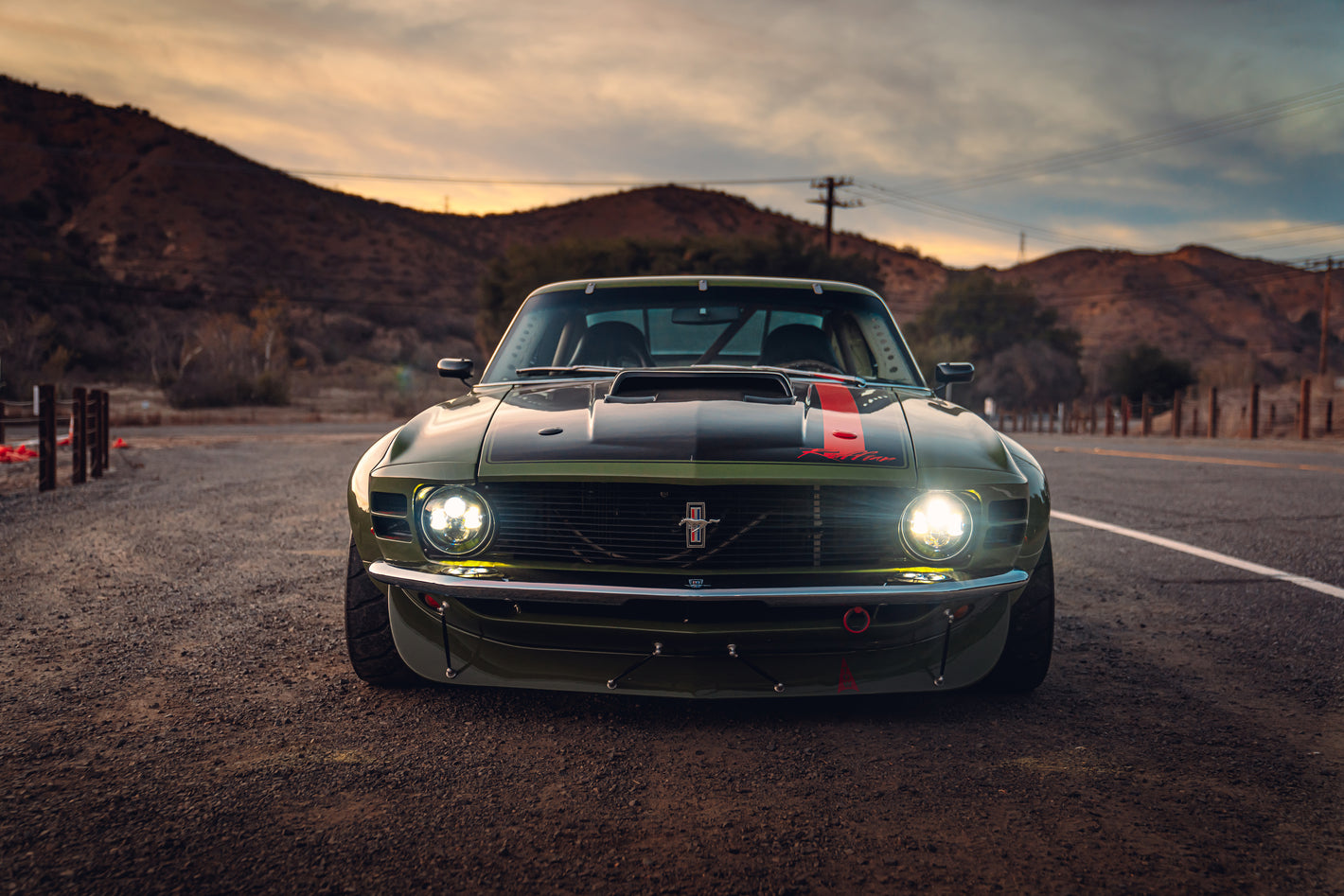

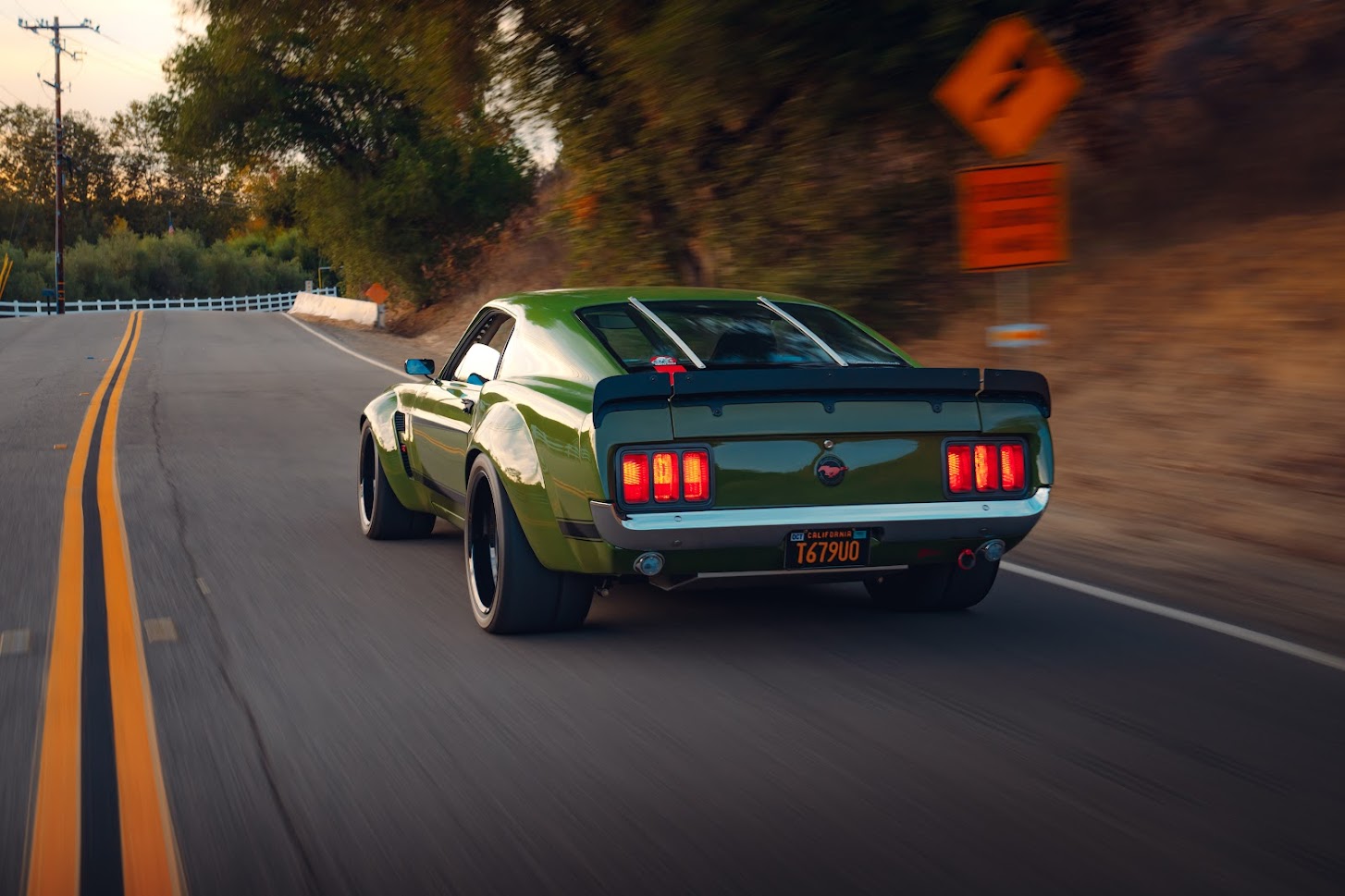

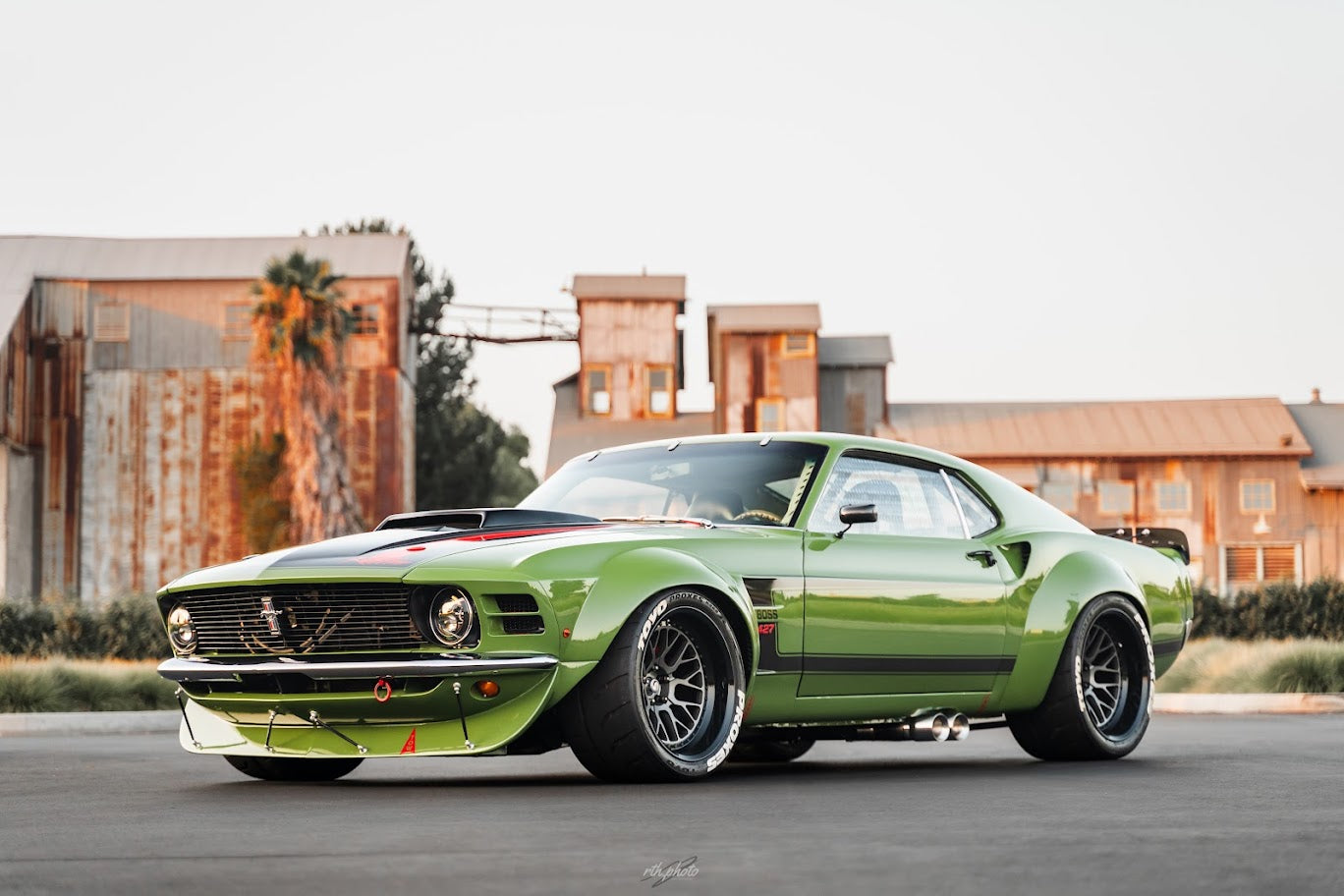

Chris built the OG Ruffian Mustang in his two car garage back in 2019, prior to Ruffian Cars' existence. It was built as an all rounder, to drive to work on Friday, Cars and Coffee on Saturday and autocross on Sunday. It was inspired by the Trans Am race cars of the late 60s and early 70s, was built on a tight budget and debuted at SEMA 2019 in Toyo's Treadpass booth. It can now be found stalking the streets of Southern California.

1 2 3 4 5 6

Articles

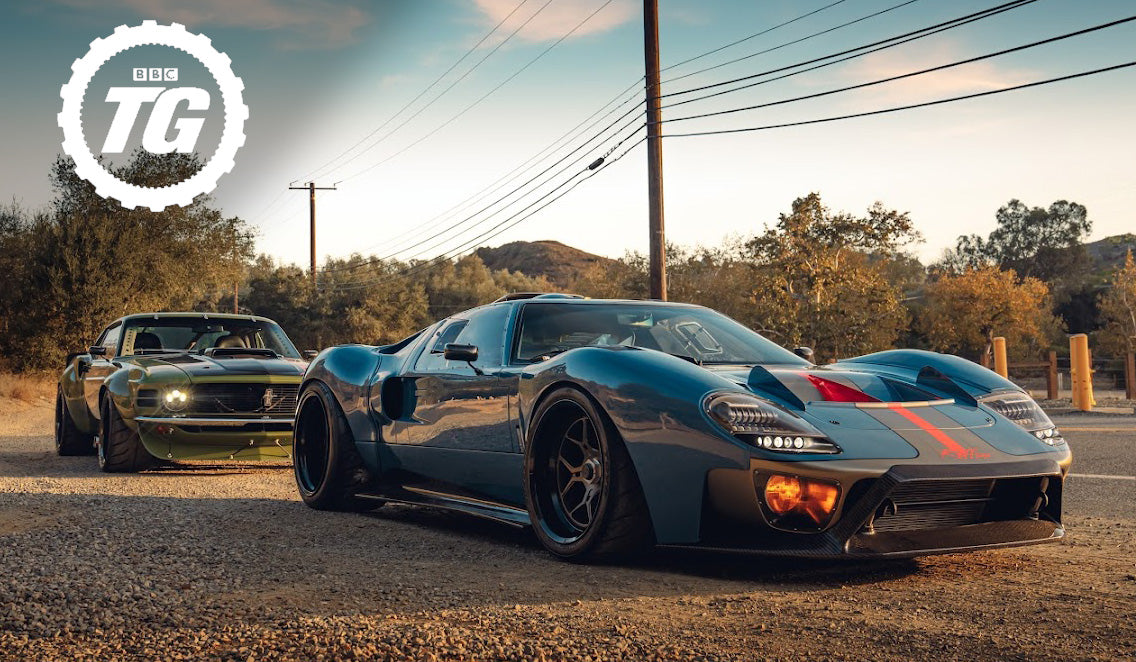

TOP GEAR
YOUNG RUFFIANS: CHRIS ASHTON'S WILD MUSTANG AND GT40 CREATIONS
by Rowan Horncastle
Read More
SPEEDHUNTERS
RUFFIANS RUN WILD: CHRIS ASHTON'S GT40 & MUSTANG
by Dave Thomas
Read More
STREET MUSCLE MAG
WHEN FORM FOLLOWS FUNCTION, YOU GET THE RUFFIAN
by Vinny Costa
Read More

1 3

Videos

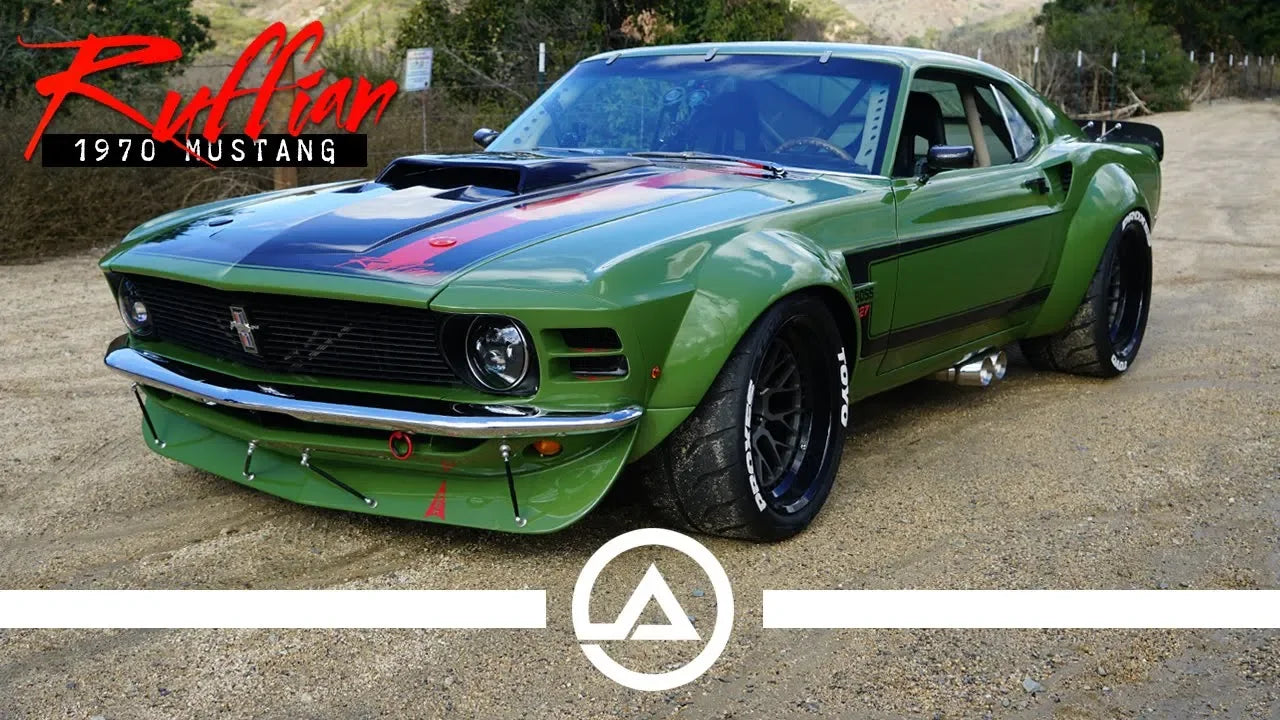

1970 "OG" MUSTANG

BUILD SPECS

ENGINE

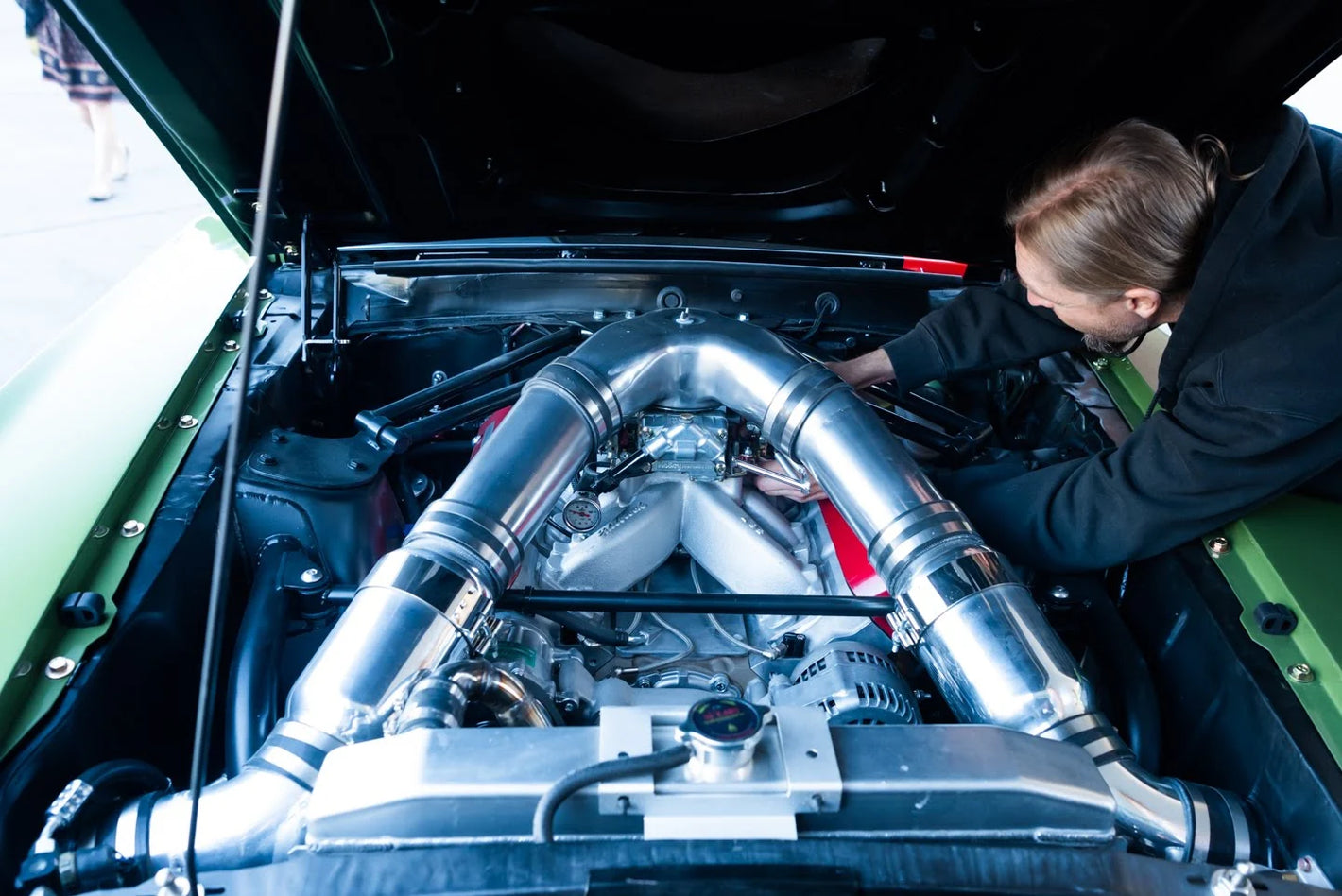

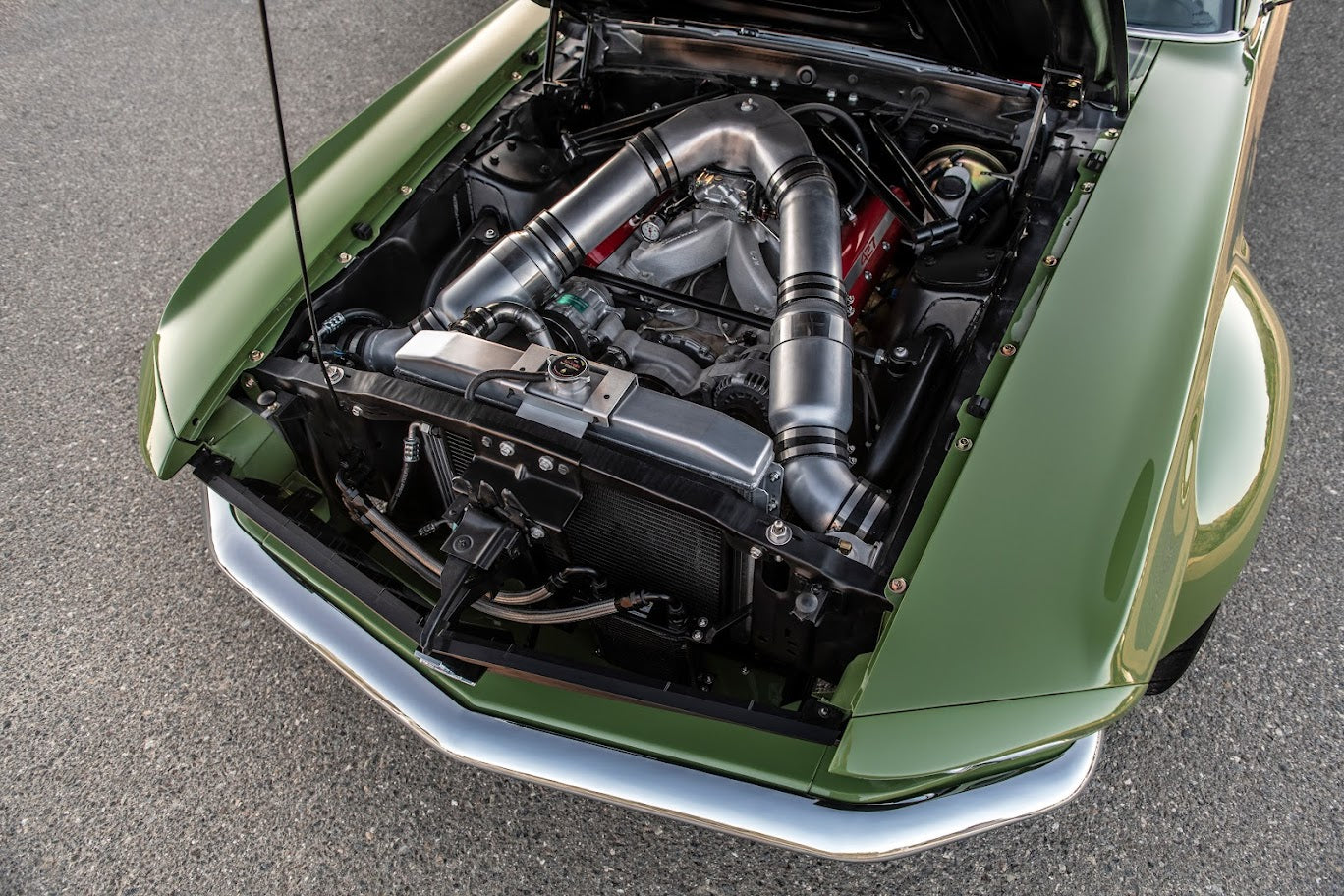

Engine: BluePrint Engine's 427ci stroker LS3 - 625hp, 550 ft lbs torque

Carburetor: Quick Fuel 850 cfm annular

Oil: Royale Purple

Engine Extras: Custom cold air intake

Fuel Type: 91 Octane

Fuel Pump: Aeromotive, in tank

Fuel Cell: Fuel Safe, 22 gallon

DRIVETRAIN

Transmission: 6-speed manual, T56 Super Magnum

Rear Axle: Oil cooled Ford 9in floater

Differential: TrueTrack, 4.11:1 ratio

CHASSIS AND SUSPENSION

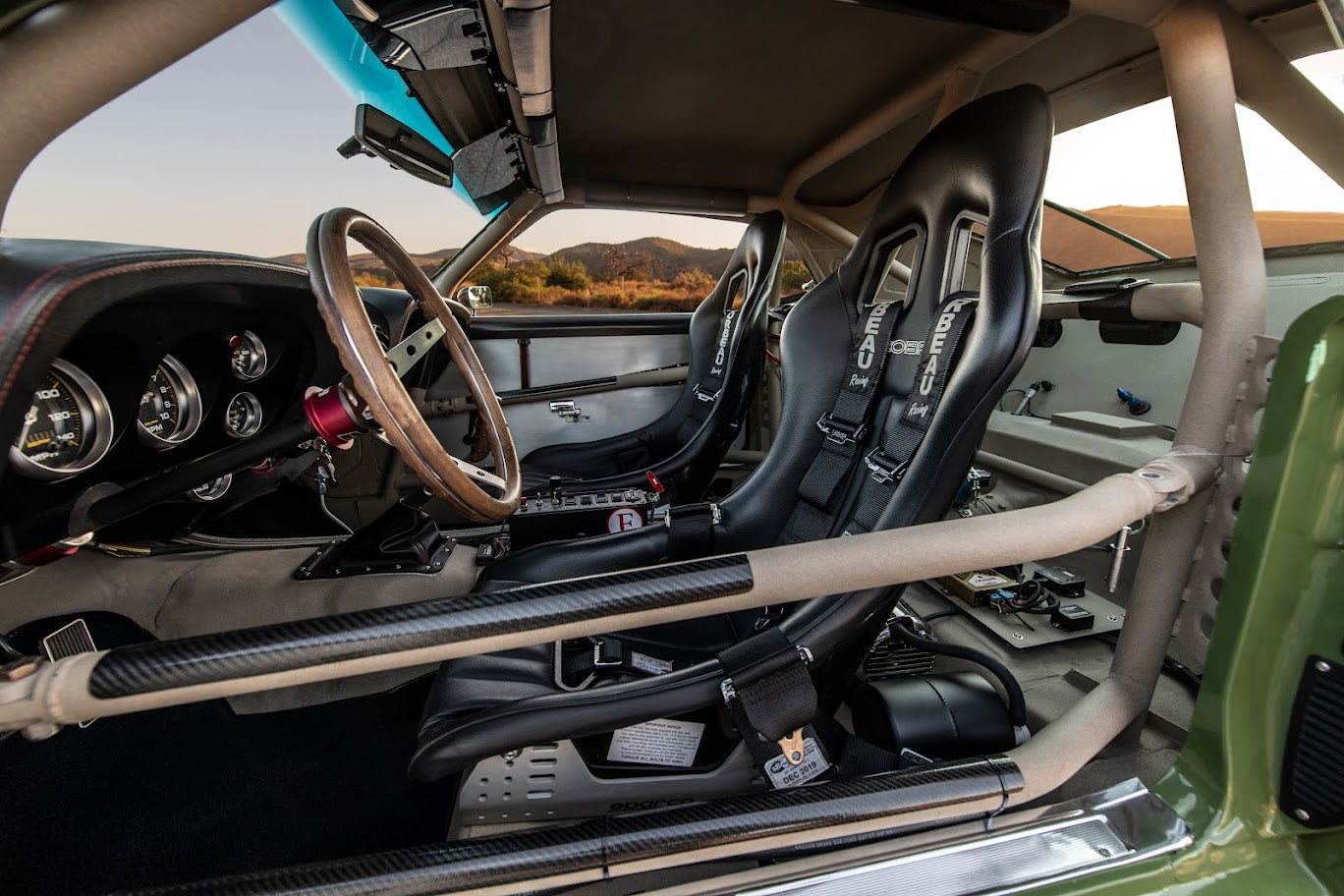

Roll Cage: Custom 10 point

Reinforcement: Convertible seat risers and inner rocker rails

Front Suspension: Street or Track tubular control arms, 1" Shelby drop

Rear Suspension: Street or Track three link

Shocks: DSC Sport active coilovers

Front swaybar: 1-1/8"

Rear swaybar: 1" adjustable

Type: Unisteer hydraulic power assist

BRAKES

Manufacturer: Wilwood

Front: 13" 4 piston

Rear: 12" 4 piston

WHEELS AND TIRES

Wheel make and model: Signature ONE

Wheel Finish: Gloss black hoop, matte gun metal center, black hardware

Front Wheel Size: 18x11

Rear Wheel Size: 19x12.5

Tire make and model: Toyo Proxes R888R

Front Tire Size: 315/30/18

Rear Tire Size: 345/30/19

BODY AND PAINT

Metalwork: All steel, custom fabricated

Front fenders: 1" Kar Kraft drop

Bumpers: Custom fit

Glass: Fesler flush mount

Paint and Body: South County Auto Body

Color: 1978 Porsche Olive Green #274

ELECTRICAL AND LIGHTING

Wiring: Painless

Battery: Braille lightweight battery in the trunk

Engine Management: MSD LS Ignition Control

INTERIOR

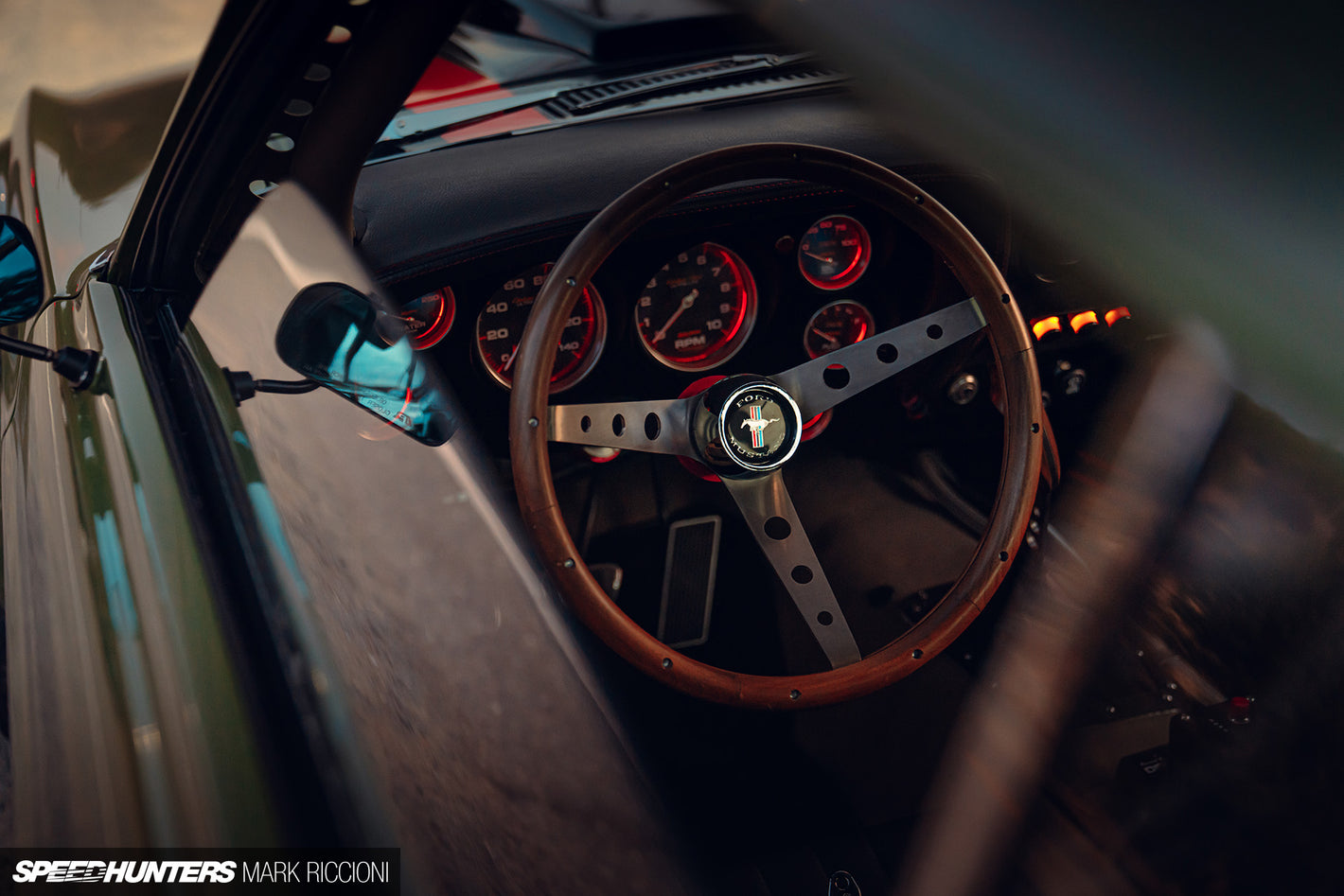

Gauges: Autometer Carbon Fiber Ultra-Lite

Seats: Cobra FIA historic

Harness: 5 point Corbeau

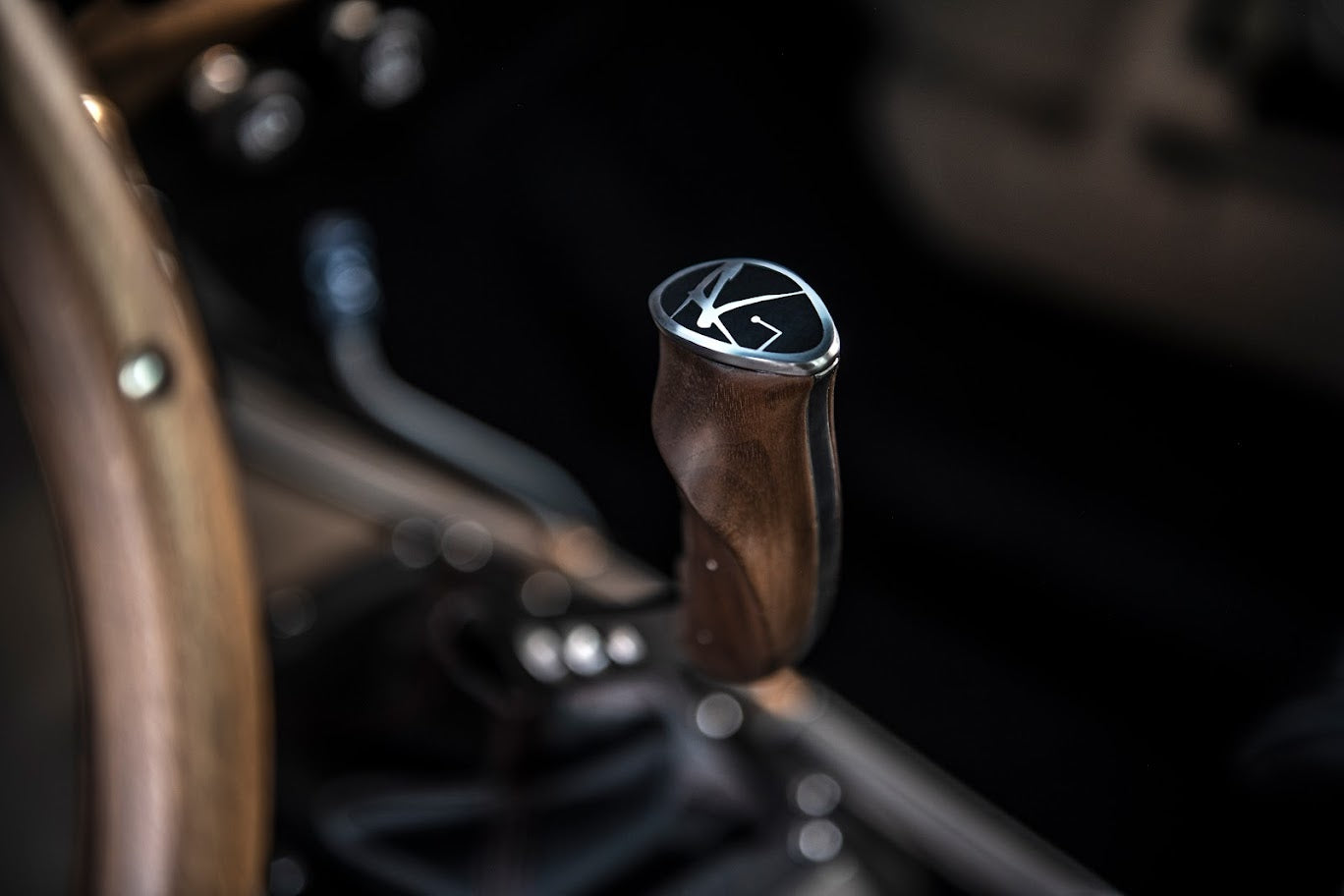

Shifter: Jake Palm

Fire Suppression: 3 nozzle system

Accusump hydraulic accumulator

AC System: Vintage air

Ruffian Mustang Build Book - Softcover + PDF

The Ruffian Mustang build book documents a hobbyist car builder's three year journey taking an ordinary 1970 Mustang and turning it into something extraordinary in a small two car garage using only basic tools and knowledge gained freely online. Follow along with detailed descriptions and hundreds of photos documenting initial teardown and rust repair to sheet metal fabrication, 3D printing, and custom body work. Whether you use the book as reference, inspiration, or as a coffee table conversation piece, it's a journey you're unlikely to find anywhere else.

$27.99 USD
